False Floors

If you are removing 3rd row seats or you have a vehicle with a floor that is not suitable to mount a drawer system on then we can supply a false or hinged floor to suit.

Jeep Grand Cherokee Hinged Floor

The Jeep Grand Cherokee WK2 has the spare wheel located in the cargo area under a false floor. This floor is not fixed to the vehicle so is not suitable to mount a drawer system to. There are factory tie down points however they are only secured by very small self tapping screws, which are not strong enough to restrain a fridge or set of drawers.

To solve this problem we have put hundereds of hours into testing and developing a hinged floor system that provided many benefits which include being gas strut assisted, a safety lock to prevent the floor from falling down, lockable compression latches, 6 tie down points and most importantly a built in table (optional).

The floor is support by a powdercoated aluminum frame that bolts to the vehicle using the rear seat mount bolts and two bolts through the floor in the spare wheel well (two 8mm holes need to be drilled).

The floor is made from 15mm plywood and the cavity for the table is actaully a structural part of the floor that prevent twisting when only one side is loaded.

To access your spare wheel it is simply a matter of unloacking the compression latches and lifting the floor up. You may have to remove the fridge depending on the size of it as some will hit the roof of the car.

We have drawer systems specifically designed to suit the WK2 Grand Cherokee however the floor is designed to be a unversal product that you can fit other makes of fridge slides and drawers if you wish.

Grand Cherokee Hinged Floor Features

  • Powdercoated Aluminum frame
  • 15mm Plywood floor
  • Gas strut assisted
  • Safety locking mechanism to prevent floor from falling
  • 6 Removable tie down points
  • 2 Lockable compresion latches
  • Optional free standing table (can be purchased and fitted at a later date)
  • Total weight 20kg

Nissan Patrol Y62 False Floor

The Patrol Y62 comes standard with 3rd row seats that do not sit very flat when folded down. It’s almost impossible to fit rear drawers or a fridge on top of them so we’ve developed a false floor to replace them.

Installation of our Y62 floor does not require any drilling into the vehicle as it picks up on existing mounting holes. There is a cavity where the jack was originally stowed that is still accessible through the two removable hatches. We don’t recommend installing a slimline battery under there as it can be very hard to access once you put a set of drawers on top.

At the front of the false floor is another large cavity in the centre and two smaller ones on the sides. One of the side cavities is used to reloate the jack and tools. To make use of the large space under the front of the floor we have developed a 40L water tank and pump kit that fits perfectly in there.

Y62 False Floor Features

  • 15mm Plywood
  • Heavy duty carpet
  • Access hatches
  • Jack relocation
  • Bolts to existing holes
  • Total weight 17kg

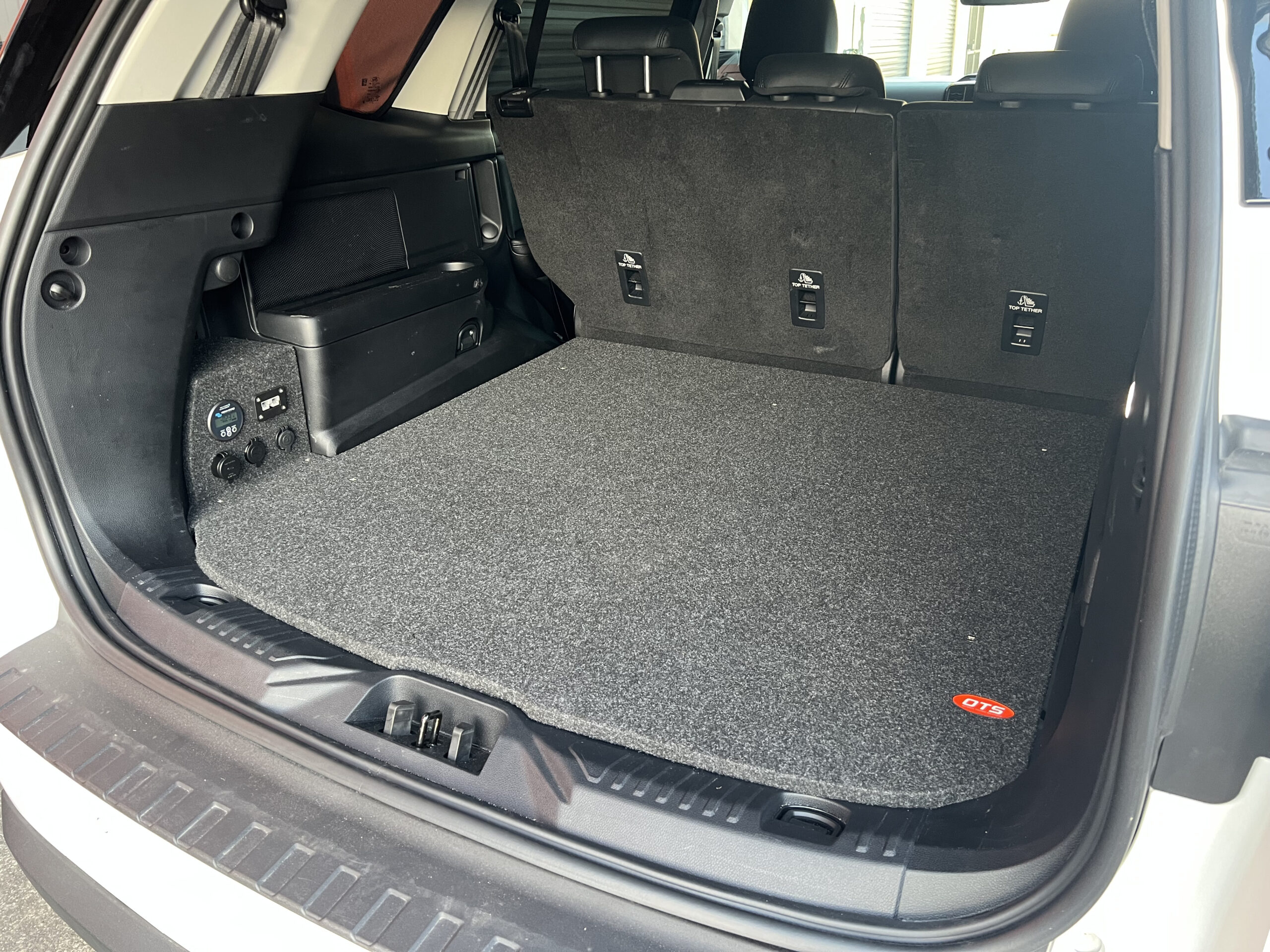

Toyota Landcruiser 300 Series False Floor

The 300 Series Landcruiser is available with 5 or 7 seats but unfortunately even if you have the 5 seat version you’ll need a false floor to put one of our drawer systems in.

The factory floor in the 5 seat Landcruiser 300 sits far too low so any drawer system you put in there will need to be lifted to be able to open the drawers.

The 7 seat Landcrusier 300 on the other hand is able to have a drawer system directly on top of the 3rd row seats. The down side to this is the extra weight you’ll be carrying around.

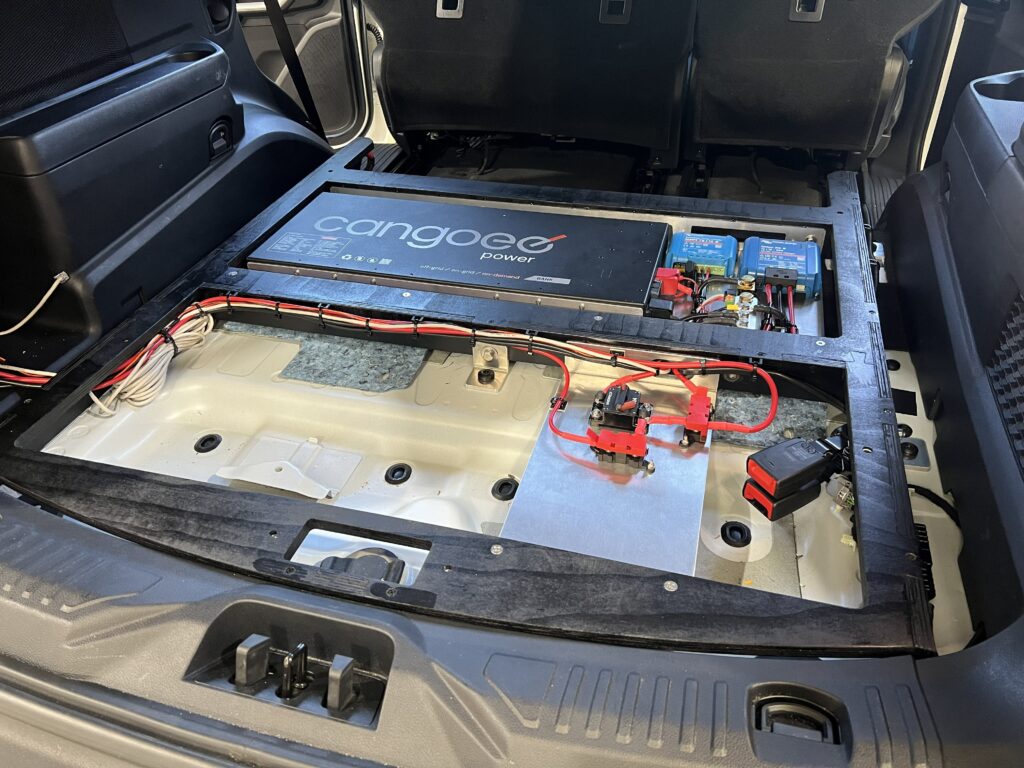

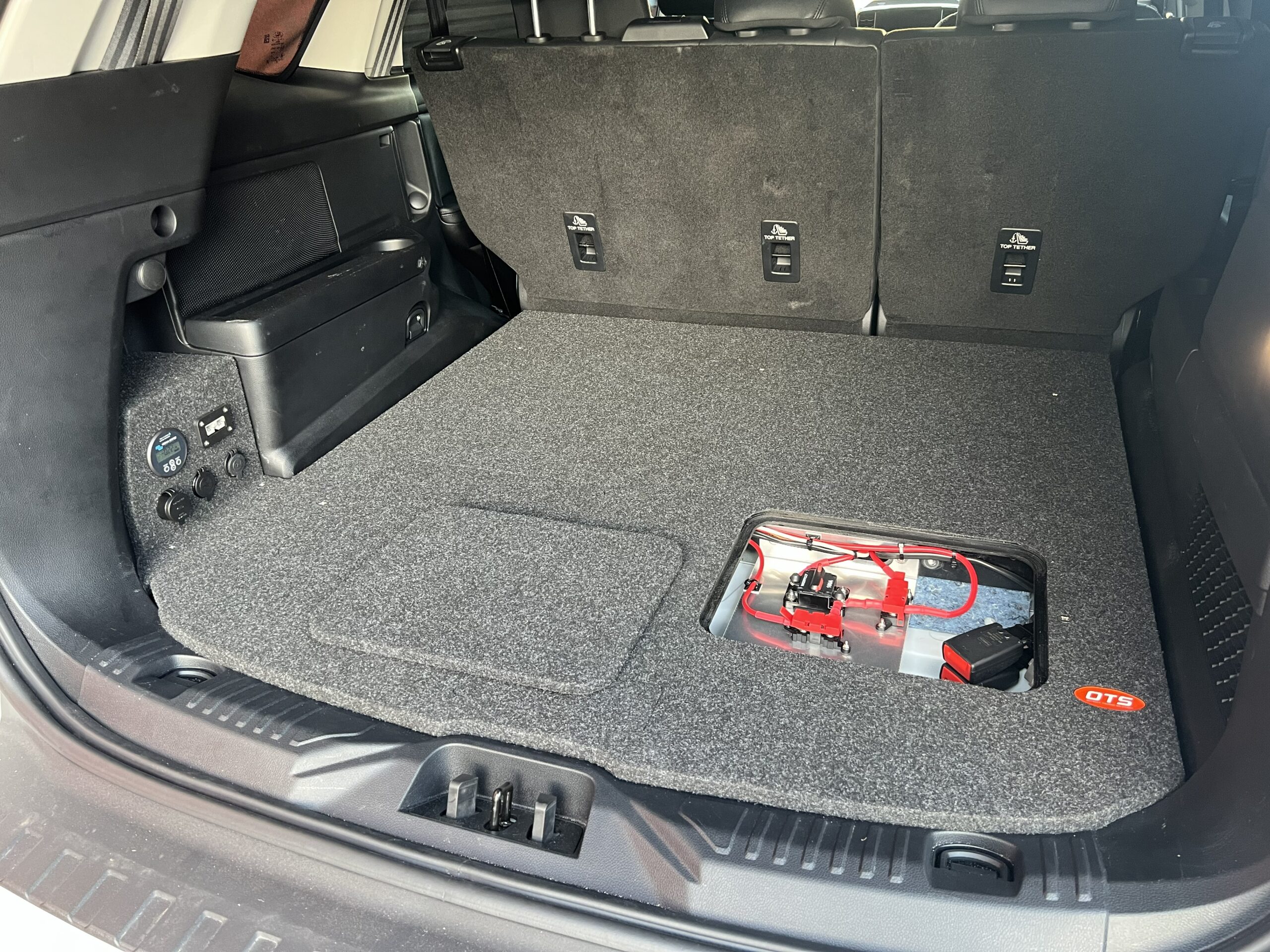

Both versions of our false floors bolt in easily to existing bolt holes and can be installed easily by one person. They come with 2 access hatches to the space beneath the floor which is a good spot to put raley used items like spare parts and recovery gear.

Landcruiser 300 False Floor Features

  • 15mm plywood
  • Heavy duty carpet
  • Access hatches
  • Removable tie downs
  • Bolts to existing bolt holes
  • Total weight 12kg

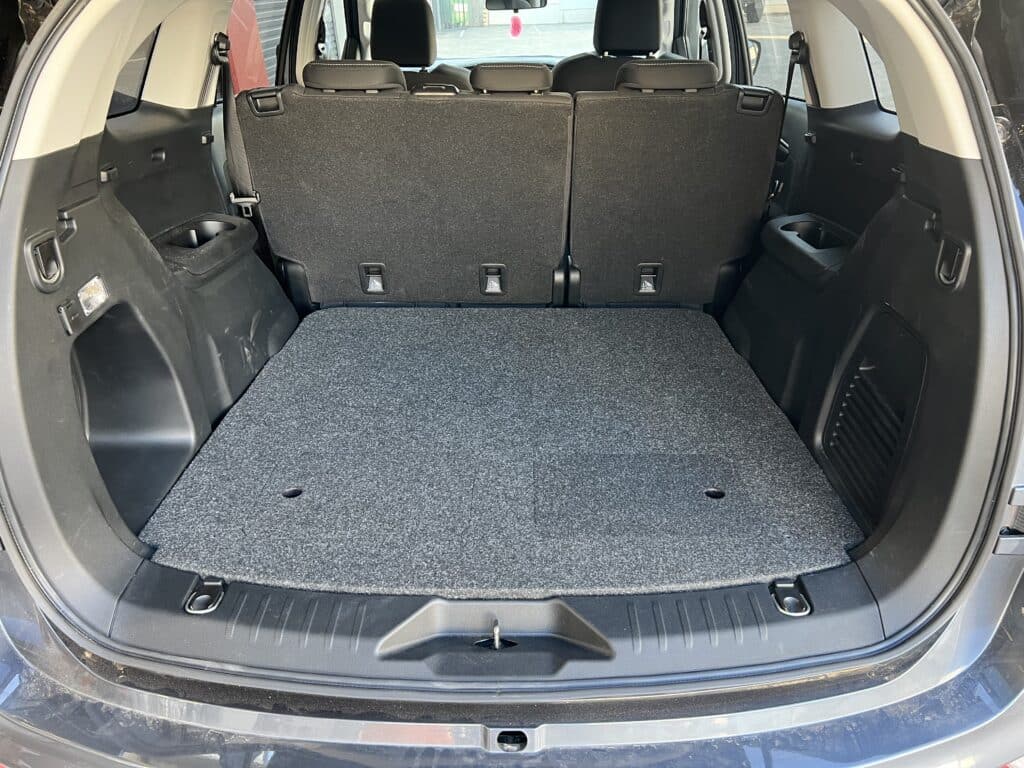

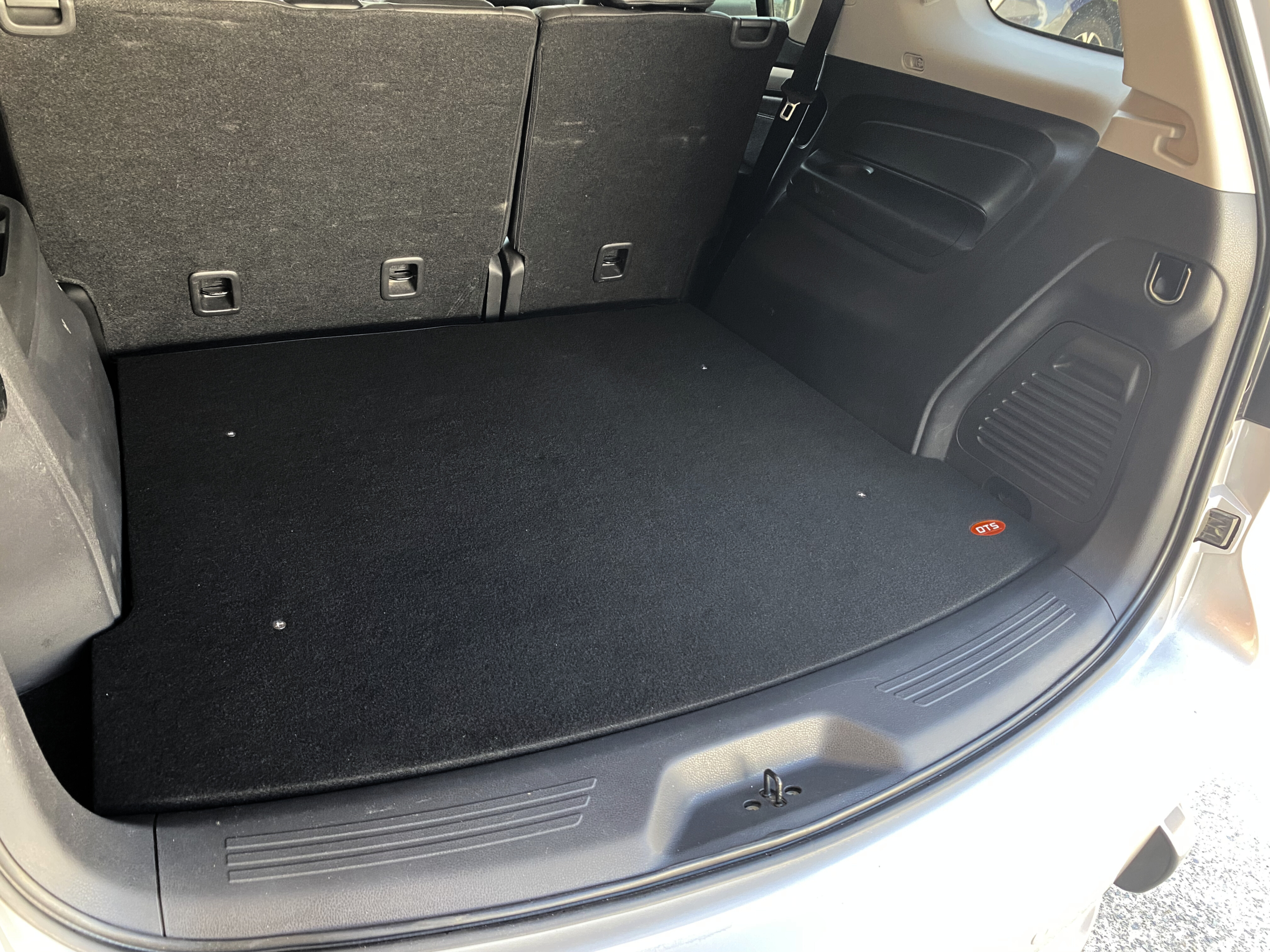

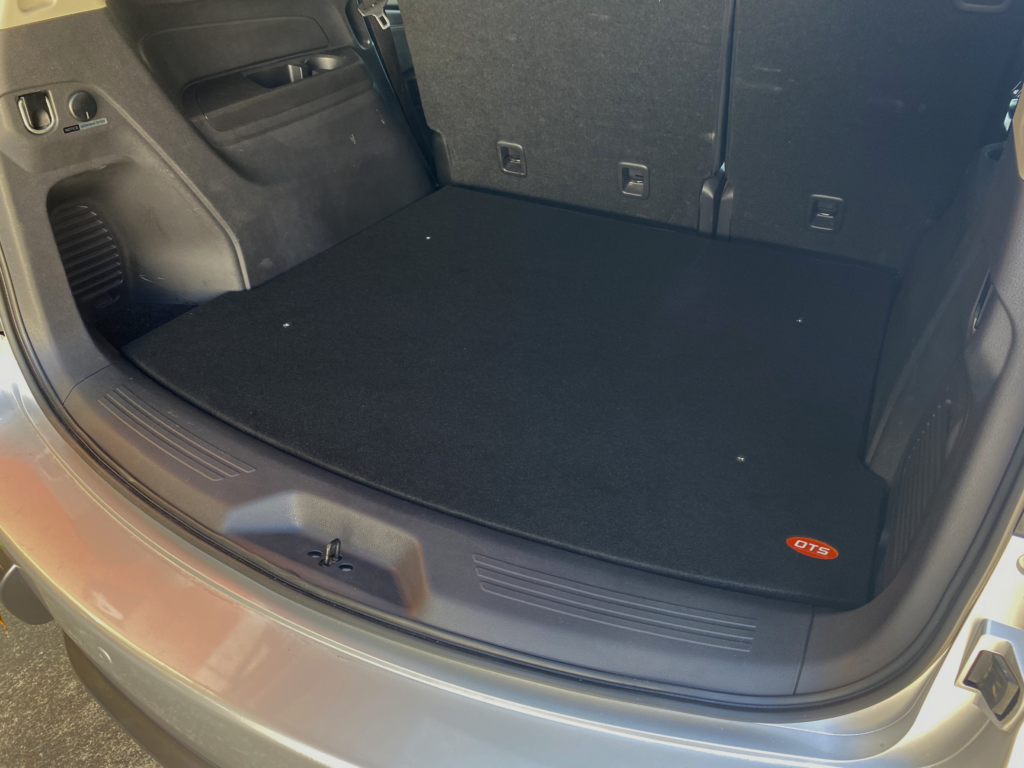

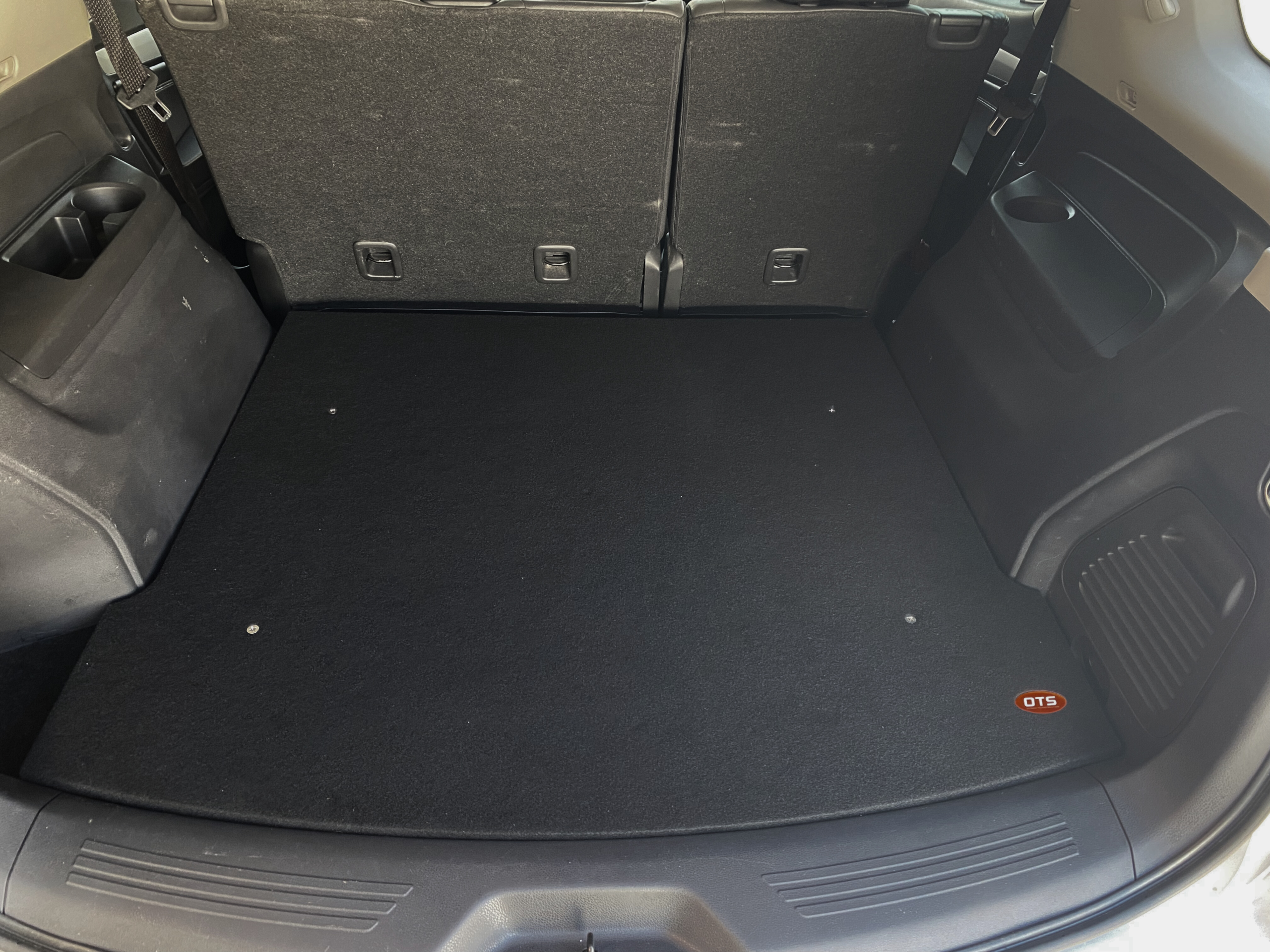

Isuzu Mux False Floor

The Isuzu MUX is only available as a 7 seater so the best way to put a drawer system in is to remove the 3rd row and install one of our false floors.

Made from 15mm plywood and wrapped in heavy duty carpet our MUX False floor looks like it was a factory fitted option.

Standard inclusions are tie down points and two access hatches to utilise the space beneath the floor.

Installation can be done by one person and uses existing bolt holes so no drilling is required.

MUX False Floor Features

  • 15mm plywood
  • Heavy duty carpet
  • Access hatches
  • Removable tie downs
  • Bolts to existing bolt holes
  • Total weight 12kg
